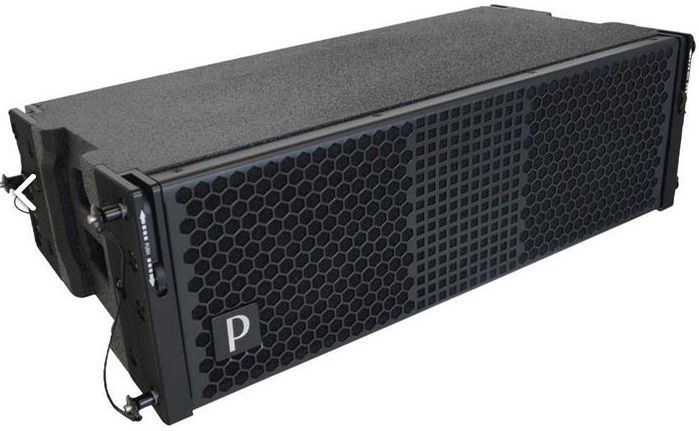

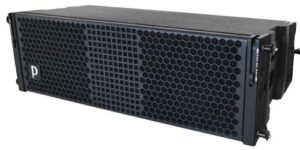

KLA2611, 2-way line array
KLA2611, compact 2-way line array designed for fixed installations and portable use
integrated hardware for easy rigging and installation.

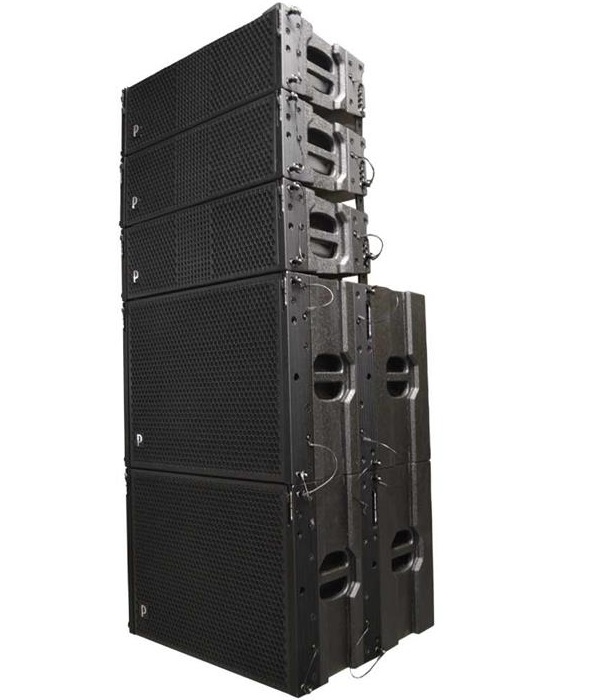

Can be used with the KLA115 1×15″subwoofer either groundstacked or flewn in array
| Model | KLA2611 |
| Design | 2-way passive line array |
| Components LF | 2 x 6,5″ woofers with 2,5″ voice coils |
| Components HF | 1 x 1″ driver with 1,7″ voice coil, mounted onwaveguide and horn |
| Power Handling | 500W cont |
| Sensitivity | 98 dB, 1W/1m. |
| Max SPL | 129dB |
| Dispersion | H110 x V10 |
| Impedance | 16 ohm |
| Frequency responce +/- 6dB | 60Hz – 19kHz |
| Dimensions | W600 x D306 x H202 |
| Weight | 21 kg. |
