VPS-SERIES, fullrange installation speakers

A series of high-end installation speakers for commercial audio and A/V installations

  • Three sizes avaliable,
  • Active and passive versions avaliable
  • 2-way fullrange point-source
  • presets in the DSP- PDSP- series amplifiers
  • Designed for fixed installations
  • Brackets, wall-mounts and hardware included
  • Avaliable black and white
  • POE, DANTE and AES67 avaliable

INTRODUCTION
The VPS SERIES, a complete range of high quality 2-way fullrange installation speakers, VPS is short for Versatile Plastic Speakers, and that may be
saying it all? A series of reliable speakers that fi ts everywhere, with their neutral design they blend in every possible installation, whether it being a bar
or a restaurant, a shop or a mall, a conference room or a A/V room, even in a high quality home cinema.

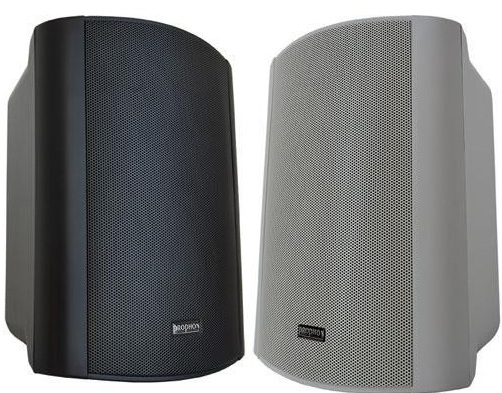

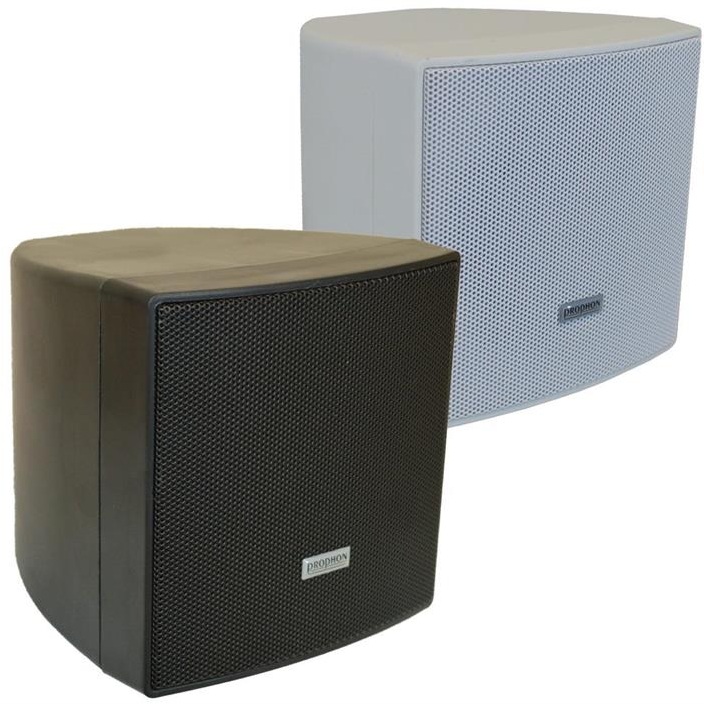

There are four models of passive speakers that is avaliable in black (B) or white (W), and one active version of the VPS602.

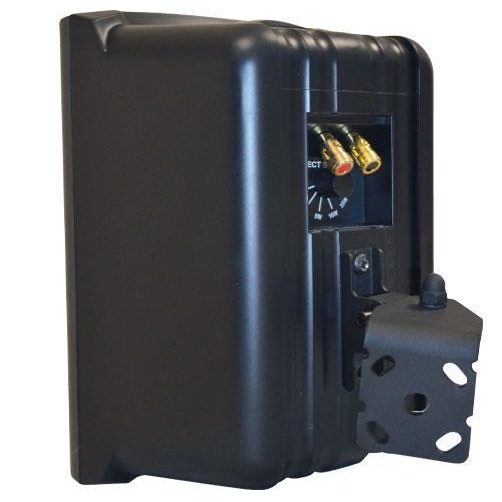

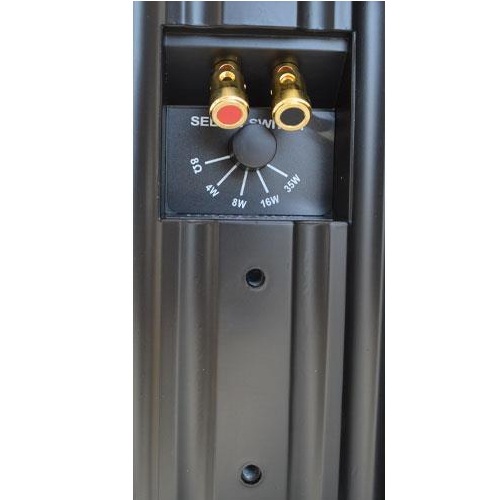

Each passive model has a built-in HI-Z 100V transformer with a select-switch in the back for easy setting diff erent power-taps,they can also be run in
LO-Z 8 ohm mode. When we started with the developing and designing process, we did not want to do ”yet another plastic speaker” so very hard work
was put into choosing components, designing crossovers and looking into the need and demand in these kind of speakers, talking to installers, project
managers, architects and sound engineers, and after endless hours of testing and evaluating, both in our testing facility, our lab, and in numerous real
installation environments the VPS series are born, after thousands upon thousands of VPS speakers sold, we can look back on all the work put into
the series and say ”it was worth it!”
With a neutral and clear sound, low distortion and wide frequency response the VPS-series are your perfect installation partner!
Developed to satisfy the demand in a series of fullrange installation speakers with a two-way design for speech and recorded music. They are easy to
install and have a well balanced sound. The PROPHON VPS-series has been designed for use in restaurants, bars, shops, hospitals, schools, A/Vrooms, conference centres, malls, cruise-ships, and other leisure facilities, where design, sound quality and fl exibility are essential.

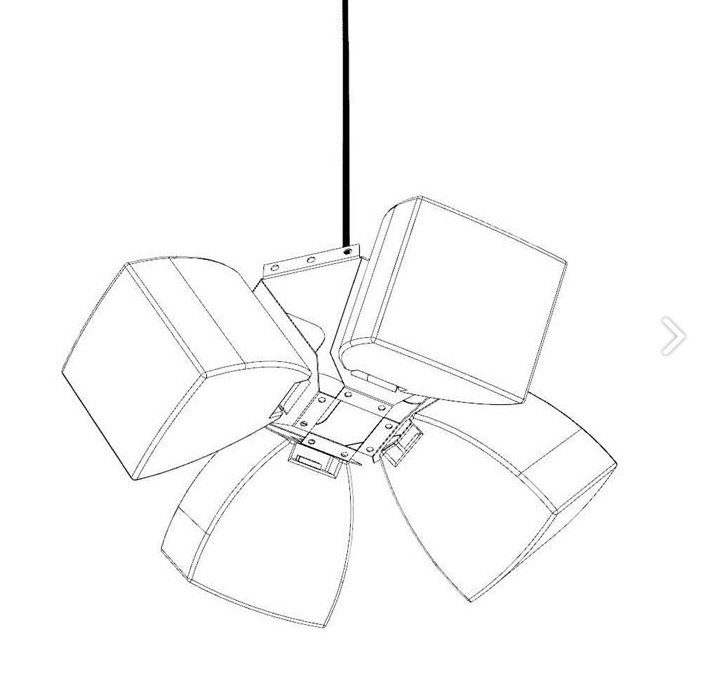

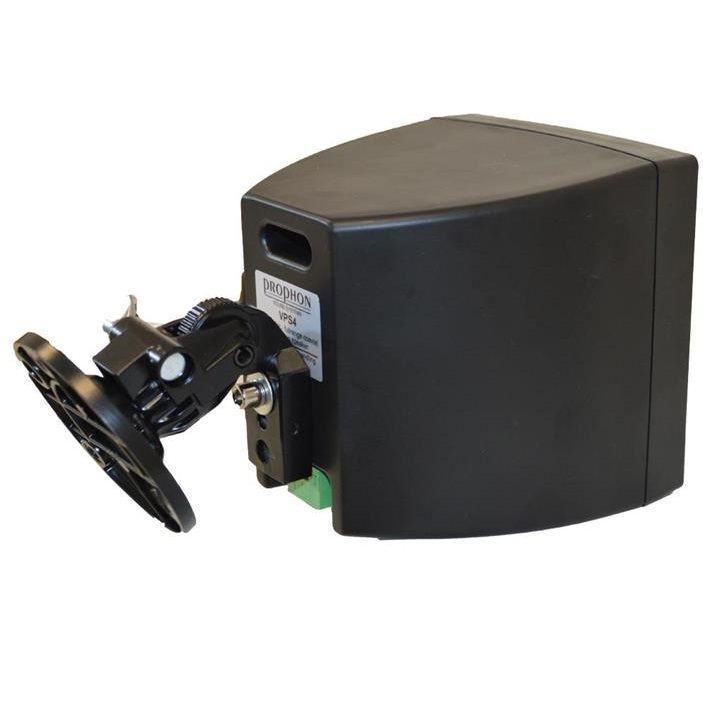

There are several diff erent mounting hardwares avaliable for wall-mounting, included are the ’U’-brackets.

ModelVPS4VPS502VPS602VPS802
Components4″/0,5″ dome tweeter coaxial5″/0,75″-dome tweeter6,5″ / 1″-dome tweeter8″ / 1″-dome tweeter
Power handling cont.40W100W120W160W
Sensitivity 1W/1m.88dB90dB91dB92dB
Frequency responce (-6dB)80Hz-19kHz70Hz-19kHz65Hz-19kHz60Hz-19kHz
Dispersion100 axisymetric100 axisymetricH100 axisymetric100 axisymetric
Nominal impedance16 ohm8 ohm8 ohm8 ohm
Power taps 100V/Lo-Z10W/20W/16ohm4W/8W/16W/30W/8ohm5W/10W/20W/40W/8ohm7,5W/15W/30W/60W/8ohm
Dimensions (H x W x D) cm.130x130x140240x180x145290x215x165350x270x180
Weight2kg.2,6kg.4kg.7kg
