INTRODUCTION
The Q-series, 4-channel class-D system amplifiers with DSP and touch-display was designed for tour and fixed installations, with an abundance of features for the professional demands of todays sound engineers, such as FIR-filters with a FIR-filter generator, built in using SMAART measruing software integration.
DANTE™ as standard, with universal wide mains input 90-250VAC for reliable power supply, with a damping factor of astounding 5000 the Q-series always supplies controled sound no matter the conditions of cabling or impedance.

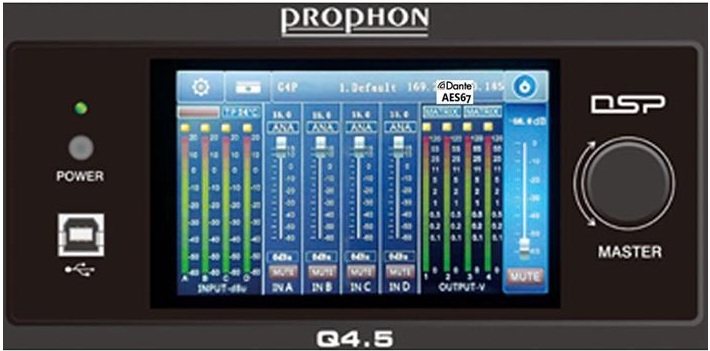

The 4,3” touch-display allows for access to most basic features such as EQ, delay, signal routing, gain, store and recall presets, IP-setup,
for more advanced features use the software.

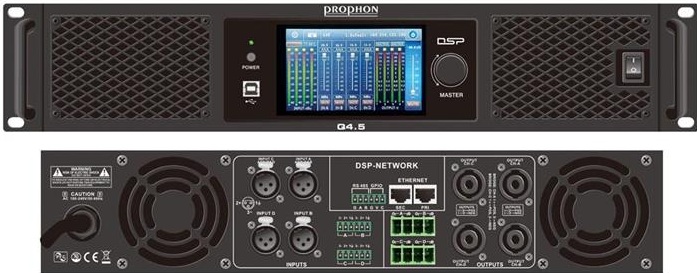

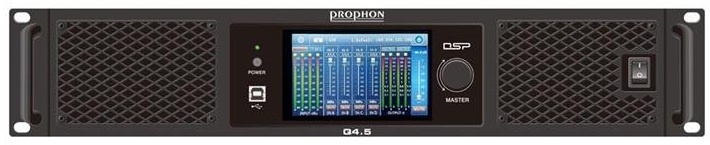

Compact 2RU / 19” design with a low weight of only 16 kg. the Q-series packs a lot of output power per weight ratio,

FEATURES
• Q4.5 with 4x5000W@4ohm, 4x3000W@8ohm, 4x3000W@2ohm,
• Q4.3 with 4x2600W@4ohm, 4x1600W@8ohm, 4x1600W@2ohm,
• Class-D
• Universal mains input 90-250VAC with PFC
• DANTE™ 4×4 • 96kHz/24bit DSP
• 5000 Dampning factor (20Hz-2kHz)
• 3-band DEQ, dynamic EQ for each input-channel

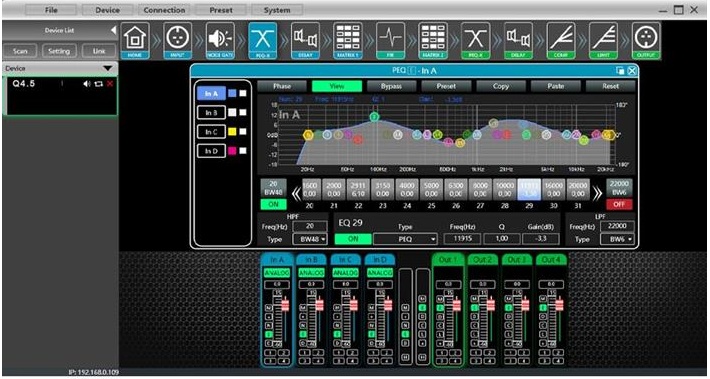

• 15 PEQ on each input channel (freq. Q. gain)
• 10 PEQ on each output channel (freq. Q. gain)
• 3 x signal matrix on each channel

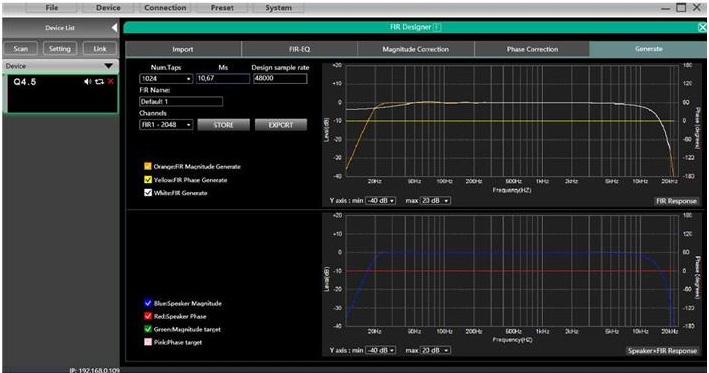

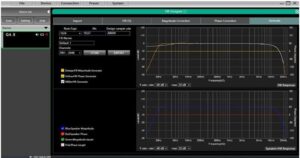

• FIR filter and FIR filter generator using SMAART measuring software
• Preset store and recall
• EQ preset database
• 4,3” touch-display with most basic functions accessable

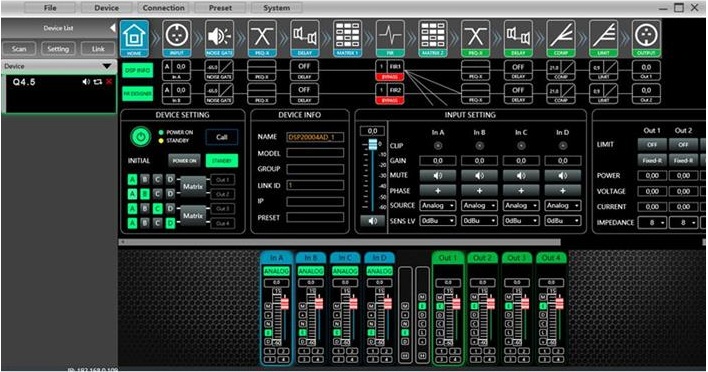

• Software for more advanced functions
• Channel and function grouping freely
• Networking
• Limiter on each output channel
• Gate on each input channel
• Compressor on each output channel
• up to 2000mS delay on all input and output channels
• GPIO

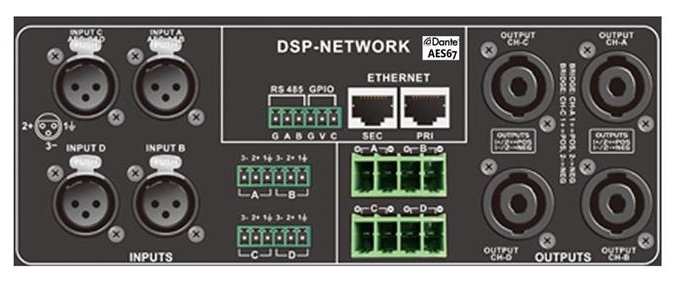

• XLR input & Phoenix in/out,
• Speakon NL4 & phoenix output
• 2RU / 19”, 500 mm. depth
• 16kg. net weight
