V-SERIES
The V-series systems-amplifiers was designed for pro-audio touring and high-end fixed installations.

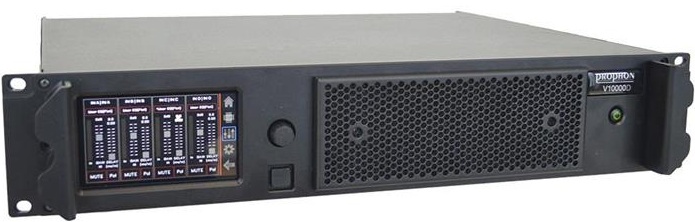

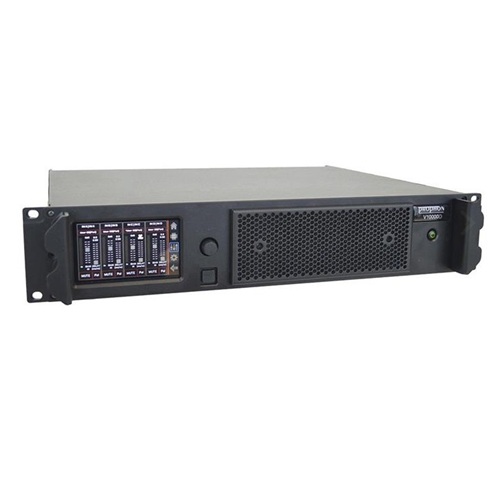

Featuring three models, V10000D, V14000D and V20000D, 4-channel amplifiers with FIR-DSP, matrix, Network, (AES / DANTE optional)
With all prophon speakers stored in the internal loudspeaker database for accessing, routing and using in any combination and any configuration,
so that the user can build, set up, store and recall presets and configurations according to need and application.
With the user-friendly touch-display most features can be managed without using a computer.
Up to 256 amplifiers can be connected in a daisychained network, using the dedicated software, where amplifiers, speakers and channels can be grouped in several layers and depth, linked, assigned and managed with EQ, delay, crossover etc. on each channel-group

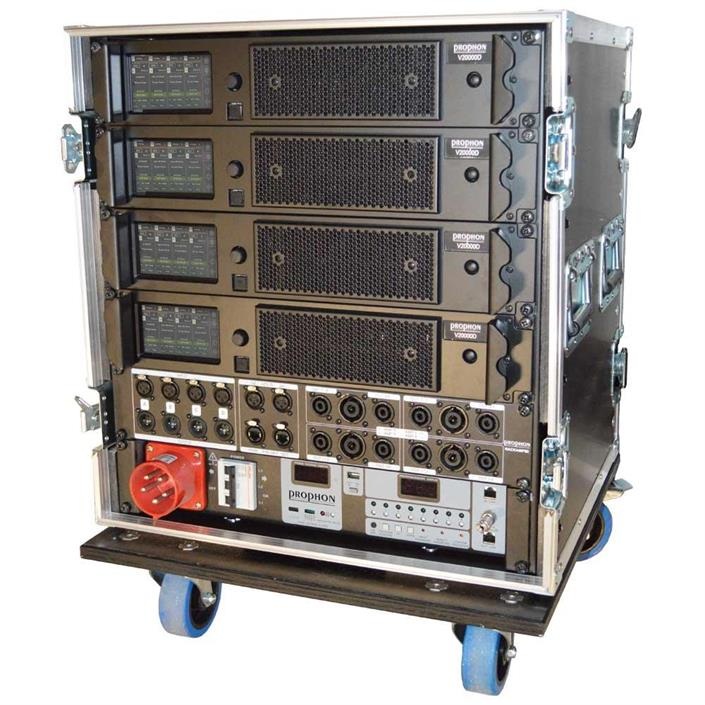

The V-series can be used in fixed installations, portable use or tour, we also offer our PRO-AMP-RACKS ready to go, with PDU´s, amplifiers and connection panels mounted in either tour-racks, or installation racks, depending on need and application
| Model | V10000D | V14000D | V20000D |
| Total output power PDU | 10000W | 14000W | 20000W |
| Power, all channels driven, LO-Z | 4 x 1250W @ 8 Ω 4 x 2500W @ 4 Ω 4 x 2500W @ 2 Ω | 4 x 1800W @ 8 Ω 4 x 3500W @ 4 Ω 4 x 3500W @ 2 Ω | 4 x 2500W @ 8 Ω 4 x 5000W @ 4 Ω 4 x 5000W @ 2 Ω |
| Power per channel max (Power Sharing) | 1300W @ 8 Ω 2500W @ 4 Ω 2500W @ 2 Ω 3300W @ 2,67 Ω | 1900W @ 8 Ω 3450W @ 4 Ω 3500W @ 2 Ω 4700W @ 2,67 Ω | 3000W @ 8 Ω 6000W @ 4 Ω 5000W @ 2 Ω 6700W @ 2,67 Ω |
| Power All channels HI-Z (100V) Power All channels driven (70V) | 4 x 2500W 4 x 2500W | 4 x 3500W 4 x 2950W | 4 x 5000W 4 x 3500W |
| Bridged mode (BTL) LO-Z | 2 x 5000W @ 4, 8 Ω | 2 x 7000W @ 4, 8 Ω | 2 x 10000W @ 4, 8 Ω |
| Max output voltage and current rated Ampere 1/8 power | 150 Vpeak / 50 Apeak 7,3A @ 230V/4Ω | 189 Vpeak / 59 Apeak 10A @ 230V/4Ω | 235 Vpeak / 71 Apeak 14A @ 230V/4Ω |
| S/N (20HZ – 20kHz) | 111dB | 113dB | 115dB |
| THD+N 1/2 power | < 0,05% | < 0,05% | < 0,05% |
| Mains Power (all models) | SMPS, Wide mains 90V-265VAC, class-D | SMPS, Wide mains 90V-265VAC, class-D | SMPS, Wide mains 90V-265VAC, class-D |

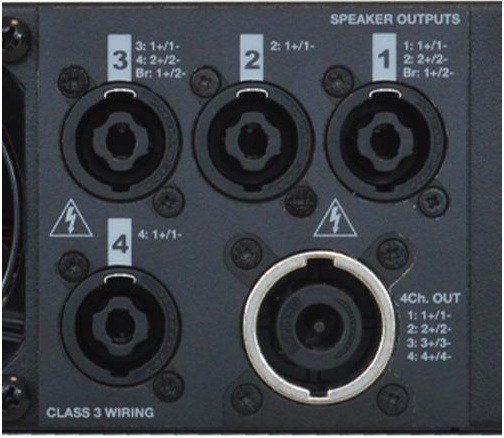

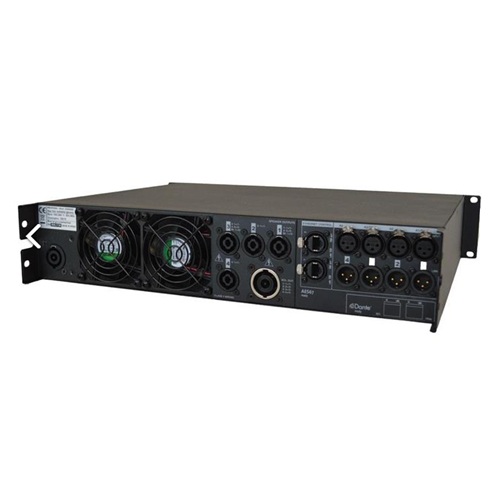

| Connectors (all models) | 4 x XLR analogue female input / 4 x XLR analogue male output (D), 4 x NL4 Speakon output, 2 x RJ485, 1xNL8 speakon output (D) avaliable with DANTE™ and/or AES3/AES67 as, 16A Neutrik PowerCon on V10000D, 32A Neutrik PowerCon on V14000W and V20000D | 4 x XLR analogue female input / 4 x XLR analogue male output (D), 4 x NL4 Speakon output, 2 x RJ485, 1xNL8 speakon output (D) avaliable with DANTE™ and/or AES3/AES67 as, 16A Neutrik PowerCon on V10000D, 32A Neutrik PowerCon on V14000W and V20000D | 4 x XLR analogue female input / 4 x XLR analogue male output (D), 4 x NL4 Speakon output, 2 x RJ485, 1xNL8 speakon output (D) avaliable with DANTE™ and/or AES3/AES67 as, 16A Neutrik PowerCon on V10000D, 32A Neutrik PowerCon on V14000W and V20000D |
| DSP (all models) | 4 channel (2 AES pairs input. 4×4 DANTE option) Double 96kHz / 64 bit floating point asynchrony high-resolution sample rate converter (SRCs), 1000 TAPS FIR filter on each output, | 4 channel (2 AES pairs input. 4×4 DANTE option) Double 96kHz / 64 bit floating point asynchrony high-resolution sample rate converter (SRCs), 1000 TAPS FIR filter on each output, | 4 channel (2 AES pairs input. 4×4 DANTE option) Double 96kHz / 64 bit floating point asynchrony high-resolution sample rate converter (SRCs), 1000 TAPS FIR filter on each output, |
| Dimensions (all models) | 483 x 89 x 355 | 483 x 89 x 355 | 483 x 89 x 355 |
| Weight | 7kg. | 9kg. | 9kg. |
