VPX-SERIES, Multi purpose 2-way fullrange

A series of multi function fullrange speakers for portable use and fixed installations
Specially designed plastic cabinet painted in ruggish speaker paint

  • Four sizes avaliable, 8″, 10″, 12″ & 15″
  • Active and passive versions avaliable
  • 2-way fullrange point-source
  • presets in the DSP- PDSP- series amplifiers
  • Portable use, Event and fixed installations
  • Several handles
  • Top hat for mounting on speaker stads
  • Several lifting-points for install

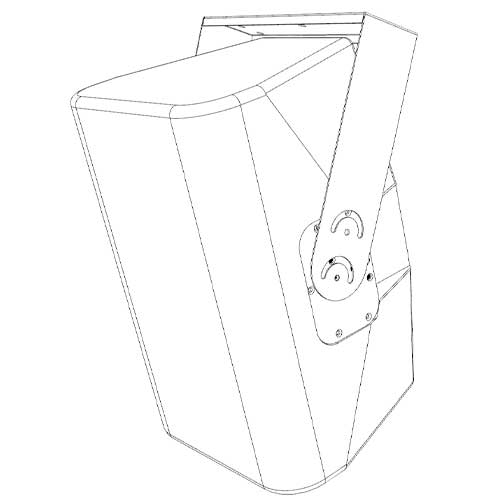

  • Brackets, wall-mounts and hardware avaliable
  • Active versions with advanced DSP, with presets and 3 custom EQ-points (Q, freq. gain)

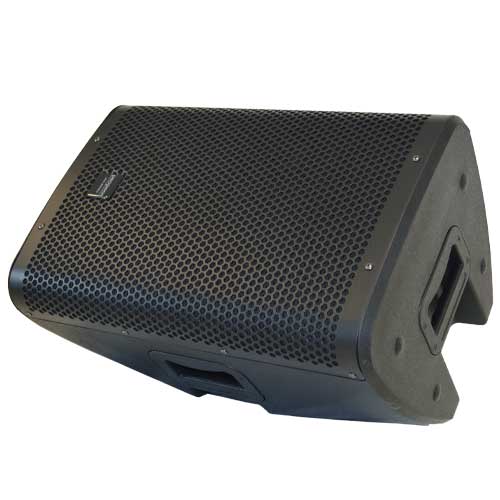

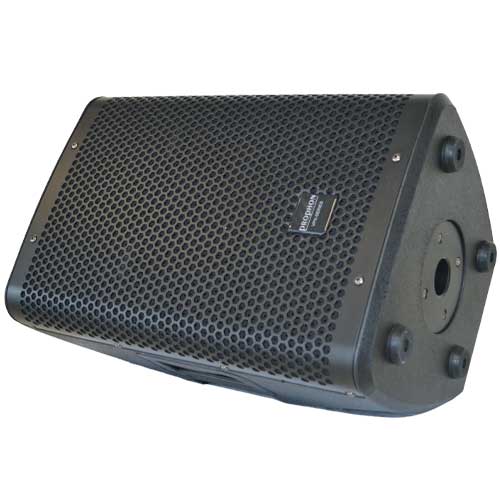

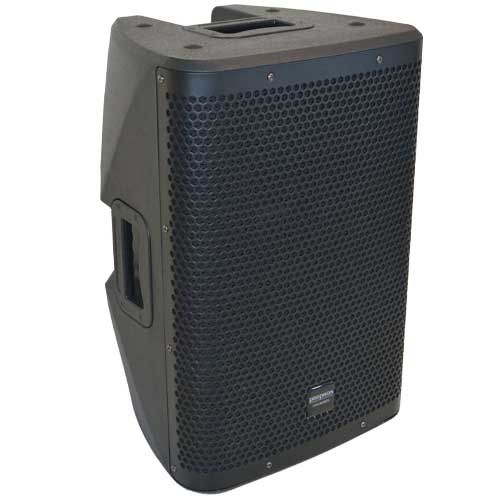

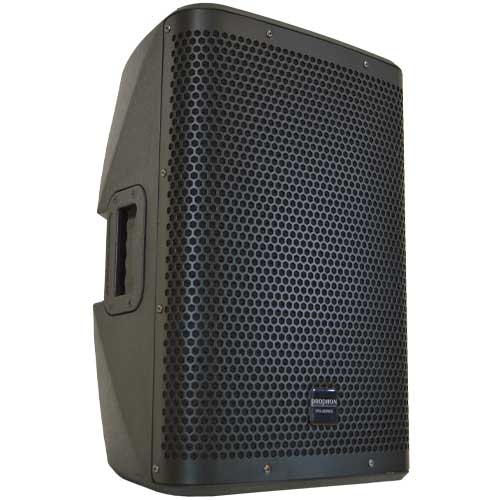

The VPX-series is a range of multifunction plastic speakers designed for portable use and fixed installations,
there are four sizes: avaliable: VPX8 with 8”/1”-driver, VPX10 with 10”/1”-driver, VPX12 with 12”/1”-driver, VPX15 with 15”/1”-driver,
Avaliable active or passive, where the active speakers features 700W RMS/1400W peak (600W+100W / 1200W+200W) class-D amplifiers
with advanced DSP-processors featuring a display and rotary encoder, with 3 different presets: vocal, live, DJ,
with additional 3 custom EQ-points with adjustable frequency, Q-value & gain, there are also bass and treble EQ-points (@100Hz and 10000Hz)
Several modes: FULLRANGE, HP@100Hz, MONITOR, with adjustable delay.
The cabinet is made with a special polypropylene plastic, painted with the same speaker paint used on our speakers made in Plywood for a protective and esthetic surface. Fully covering speaker grille and vinyl cloth glued behind the grille protects the components.
The passive versions features high-end 8-ohm passive crossover network.
The speakers in the series all feature monitor angle for use as stage-monitors, several M8 points for flying and installing, top hat for mounting on speaker-stand, several discretely hidden handles.

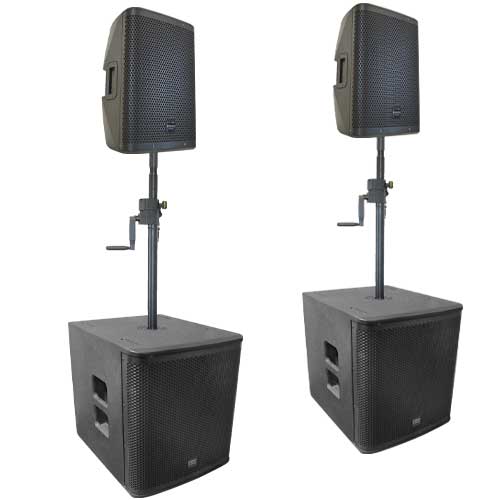

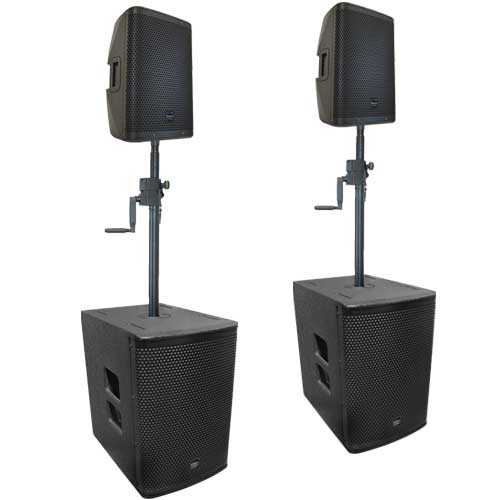

In short, the VPX series is perfect for portable use, either as fullrange stand-alone, or with subwoofers in a sound-system,
or in fixed installations as fullrange or as top-speakers with subwoofers.

ModelVPX8VPX10VPX12VPX15
Components8″-woofer, 50mm. VC
1″-driver, 38mm. VC
10″-woofer, 50mm. VC
1″-driver, 38mm. VC
12″-woofer, 65mm. VC
1″-driver, 38mm. VC
15″-woofer, 76mm. VC
1″-driver, 38mm. VC
Power handling cont.200W250W350W450W
Sensitivity 1W/1m.94dB95dB97dB97dB
Max SPL (peak)123dB125dB128dB129dB
DispersionH90 x V60H90 x V60H90 x V60H90 x V 60
Nominal impedance8 ohm8 ohm8 ohm8 ohm
Dimensions (H x W x D) cm.47×29,5×26,553x34x3260x38x3666x44x40
Weight12,5kg.15,5kg.18,75kg.22 kg
